Operation Greenhouse

1951

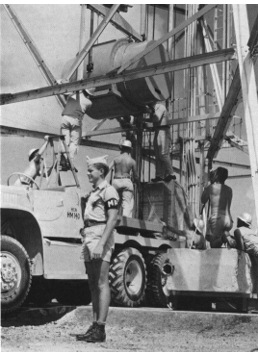

Below is an inert duplicate of the Dog device being loaded on the test tower. Dummy devices, that were physically and electrically identical, were used routinely to test and verify the shot set-up prior to installing the actual test device.

(38 K)

The actual Dog shot:

(43 K)

(43 K)

Dog was a proof test of Mk 6 strategic bomb.
This was the highest yield test up to that time (superseded by George a month later), and evaluated the stockpiled MK 6 weapon with a "How Double Prime" composite uranium-plutonium core.

The explosion lifted 250,000 tons of soil to an altitude of approximately 35,000 feet.
The Mk 6 was a improved large "Fat Man-style" weapon, with a 60 inch diameter, a length of 128 inches, and a weight of 8500 lb (later reduced to 7600 lb) a reduction from the earlier 10900 lb Mk 4. The Mk 6 had an improved 60 point implosion system (the Mk 4 had a 32 point system) that provided greater compression and higher efficiency. The Mk 6 was the first nuclear weapon stockpiled in large numbers by the U.S. (over 1000 eventually produced). Stockpiling of the MK 6 on an emergency basis was underway at the time of the test.

Test:	Easy
Time:	18:26 20 April 1951 (GMT) 06:26 21 April 1951 (local)
Location:	Island Enjebi ("Janet"), Enewetak Atoll
Test Height and Type:	300 foot Tower Shot
Yield:	47 kt

Proof test of the TX-5D bomb, a major advance in weight reduction for implosion bombs. Weight was 2700 lb with a 40 inch diameter, compared to 10,000 lb and a 60 inch diameter for earlier designs. Used a 92 point (92 lens) implosion system and a composite (plutonium/oralloy) core. This design was used as the primary in the first thermonuclear bomb test, Ivy Mike.

This test was also used to test weapon effects on various military structures. These structures were erected on Enjebi and nearby Mijakadrek Island.

Test:	George
Time:	21:30 8 May June 1951 (GMT) 09:30 9 May 1951 (local)
Location:	Island Eberiru ("Ruby"), Enewetak Atoll
Test Height and Type:	200 foot Tower Shot
Yield:	225 kt

George was the largest nuclear explosion to date (a record that stood until the first thermonuclear device test, Ivy Mike, 17 months later).

George was a thermonuclear physics experiment, and used a purely experimental device design unsuitable for use as a weapon. The test device, named the CYLINDER, consisted of an enriched uranium core which was imploded using a unique cylindrical implosion system. This device may have been the first to use external initiation to begin the fission chain reaction. The Cylinder fission device may have been based on a design by physicist George Gamow.

The device was a disk about 8 ft across and 2 feet thick perforated by an axial hole. The hole, compressed to a narrow channel by the implosion, conducted thermal radiation to a small beryllium oxide chamber containing a mixture of cryogenic deuterium with a few percent of tritium to lower its ignition temperature. The thermal radiation not only heated the fuel chamber to fusion temperatures, the pressure in the BeO wall caused it to implode and compress the fusion fuel, accelerating its combustion. The thermal radiation arrived ahead of the shock front of the fission explosion, allowing time for a reaction to occur before being engulfed by the expanding fission fireball. The yield of the fusion reaction was negligible compared to the fission device.

The progress of the fusion burn was observed by measuring the thermal X-rays emitted by the fusion plasma. This required instruments that were shielded from the thermal X-rays and the gamma rays of the fission bomb, and were far enough away from the explosion to be able to measure and transmit data while the fusion burn was in progress. This part of the experiment was designed by Hugh Bradner and Hebert York. The measurements were made by recording the fluorescence of a set of K-edge filters located at the base of the shot tower. X-rays from the fusion chamber reached the instruments through vacuum filled pipes that were inside a 4 ft. diameter lead pipe that blocked out extraneous X-rays and gammas, and weighed 235 tons. The total weight of diagnostic equipment was 283 tons.

Other diagnostics used were shielded photographic plates to detect the high energy fusion neutrons by the "proton streaks" left by protons ejected from the emulsion by neutron collisions.

The thermonuclear portion of the experiment was largely developed by Edward Teller, but based on a device patented by Johann Von Neumann and Klaus Fuchs in 1946. The Von Neumann-Fuchs invention was intended to be the ignition mechanism for the Classical Super, the first proposed design for a hydrogen bomb that was later shown to be impractical.

The test fortuitously provided useful data on the radiation implosion principle, an essential element of the Teller-Ulam design which had been devised just two months prior.

George left a large shallow crater in the coral and sand atoll - 1140 feet across and 10 feet deep (such wide shallow craters were typical of atoll tower shots).

In the sequence of three Rapatronic camera pictures below the development of the "Mach stem" can be seen as the fireball shock wave reflects off the ground. The Mach stem is a belt of intensified shock pressure at the base of the shock front. Since in this phase of growth the temperature (and hence brightness) of the fireball is determined by the strength of the shock wave, a bright band can be seen where the Mach stem is located.

George 10 milliseconds after detonation (26 K)

George 20 milliseconds after detonation (38 K)

George 30 milliseconds after detonation (34 K)

George fireball (49 K)

George fireball (40 K)

George mushroom (62 K)

George mushroom (83 K)

George mushroom (39 K)

Test:	Item
Time:	18:17 24 May 1951 (GMT) 06:17 25 May 1951 (local)
Location:	Island Enjebi ("Janet"), Enewetak Atoll
Test Height and Type:	200 foot Tower Shot
Yield:	45.5 kt

First test of the principle of "fusion boosting", the use of a thermonuclear fusion reaction to inject neutrons into a fission core to boost efficiency. The Item device used a cryogenic deuterium-tritium mixture inside an enriched uranium core. [Carson Mark later reported in an 1993 interview that it used D-T gas.] The boosting approximately doubled the yield over its expected unboosted value.

Unidentified Greenhouse shot (18 K)
