The First Atomic Weapons

Last changed 30 March 1999
In some sort of crude sense which no vulgarity, no humor, no
overstatement can quite extinguish, the physicists have known sin;
and this is a knowledge which they cannot lose.

J. Robert Oppenheimer

Concurrent with the preparations for the Trinity test, preparations were being made for the delivery of operational atomic weapons to Tinian Island in the Pacific for use against Japan at the earliest possible date.

Two weapon designs were available for use - the gun assembly Little Boy bomb that used uranium highly enriched in U-235, and the implosion assembly Fat Man that used plutonium.

Little Boy and Fat Man On Display

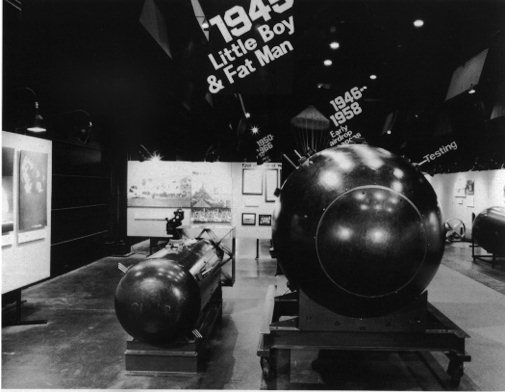

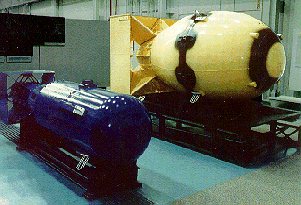

At the National Atomic Energy Museum, Albuquerque, New Mexico, USA, representative weapon casings for the Little Boy and Fat Man type weapons are on display.

Bomb DisplayLittle Boy and Fat Man (136 K)

Bomb DisplayLittle Boy and Fat Man (65 K)

The Combat Weapons

After the detonation of the first plutonium bomb core in the Trinity test, the next weapon that was available was the completed Little Boy. It was this weapon that was dropped on Hiroshima. Another Little Boy weapon would not have been ready for months, for this reason only one Little Boy unit was prepared. In contrast many Fat Man bomb assemblies were on hand (without plutonium), and the actual "Fat Man bomb" delivered against Japan only existed when assembly of the Fat Man unit with the plutonium core was completed shortly before the mission.

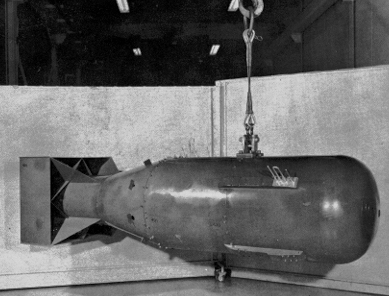

Little BoyLittle Boy bomb before use in combat (75 K)

DesignationMk-I "Little Boy"Mk-III "Fat Man"
Width28 in.60.25 in.
Length120 in.128 in.
Weight8,900 lb.10,300 lb.
Yield15 - 16 Kt21 Kt

The second plutonium bomb core was delivered to Tinian for use in the first deliverable Fat Man weapon against Kokura arsenal only days after the arrival of Little Boy. Due to weather problems related problems, the Kokura primary target was scrubbed and the secondary target Nagasaki was bombed.

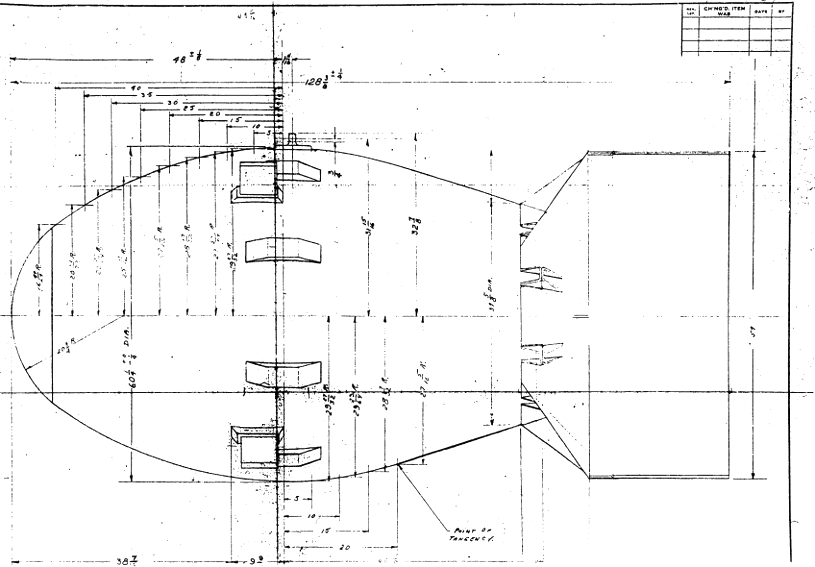

Fat Man Blue PrintFat Man Blue Print (73 K)

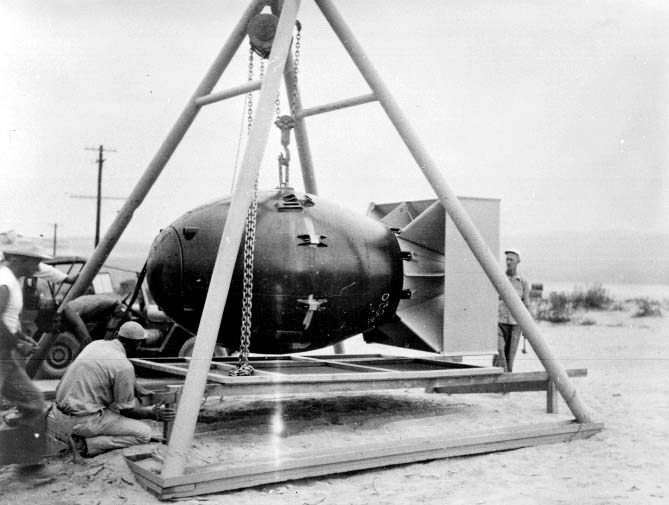

Fat Man bomb assembly being prepared for testing at the US Navy Saltwells ordnance facility near Inyokern, California (now China Lake Naval Weapons Center, near Ridgecrest, California):

Fat Man case at Saltwells(45 K)

Buttons of refined plutonium metal used in the second bomb core, dropped on Nagasaki (40 K)

Click here for a close up view of the plutonium buttons (145 K)

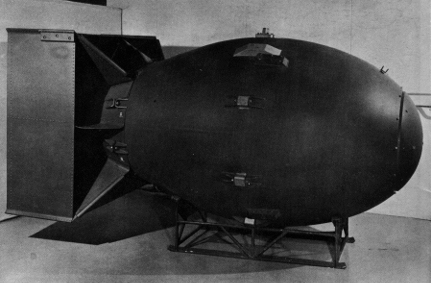

Fat Man in MuseumFat Man unit (71 K)

Fat Man at Tinian Island

Below are images of the actual Fat Man bomb that was dropped on Nagasaki assembled and ready for combat.

Fat Man at Tinian, black and whiteAssembled Fat Man bomb at Tinian Island (27 K)

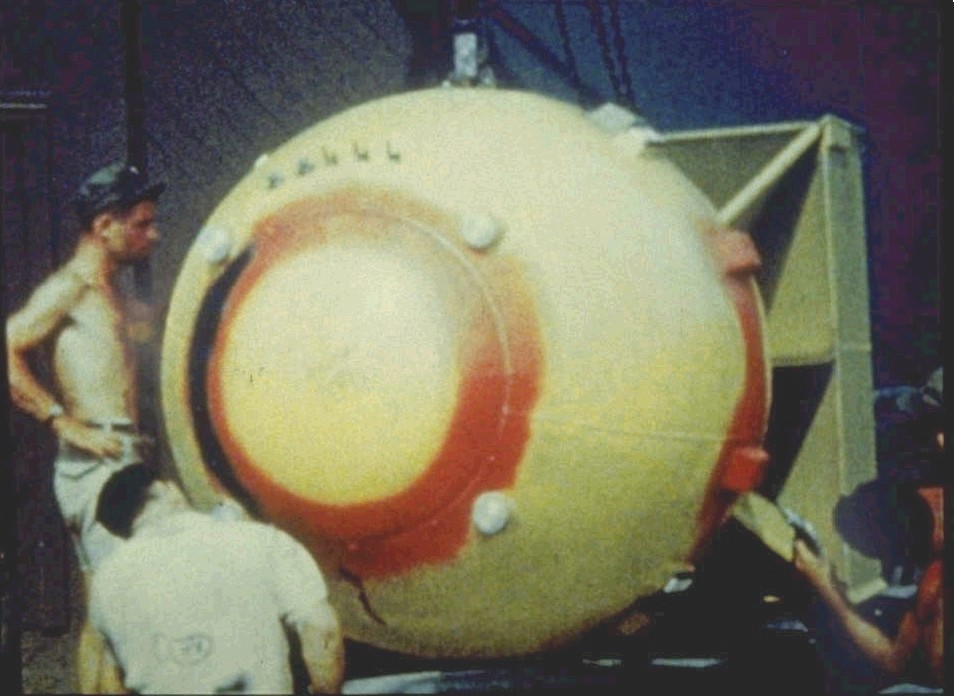

Fat Man at Tinian, color
640x467, 56 K
Fat Man bomb being prepared for loading on the B-29 Bock's Car
Click for big image (954x646, 114 K)
